Description
1. 28397569 Injector’s Basic Information

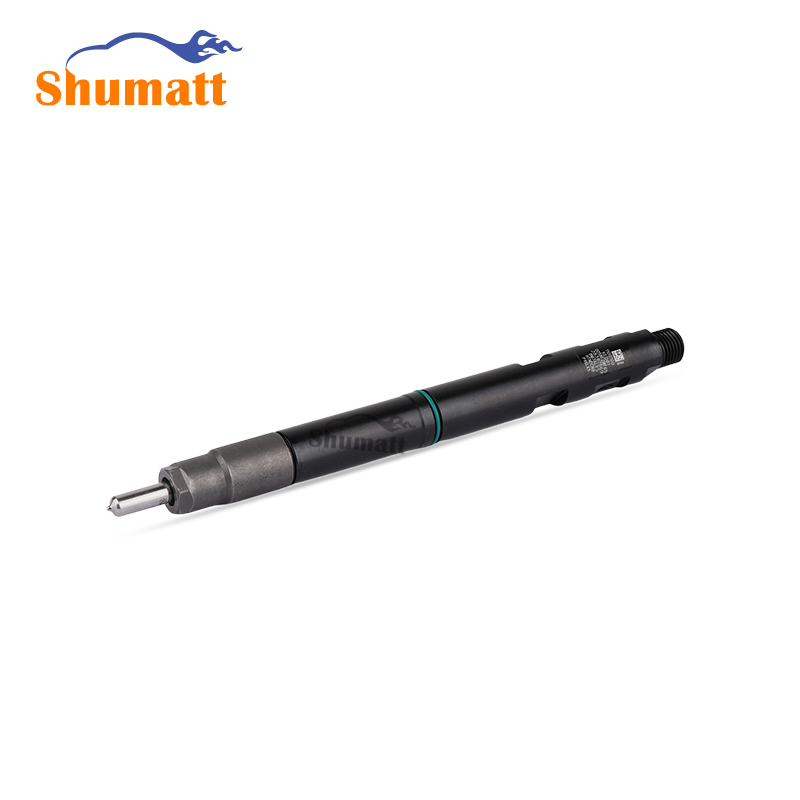

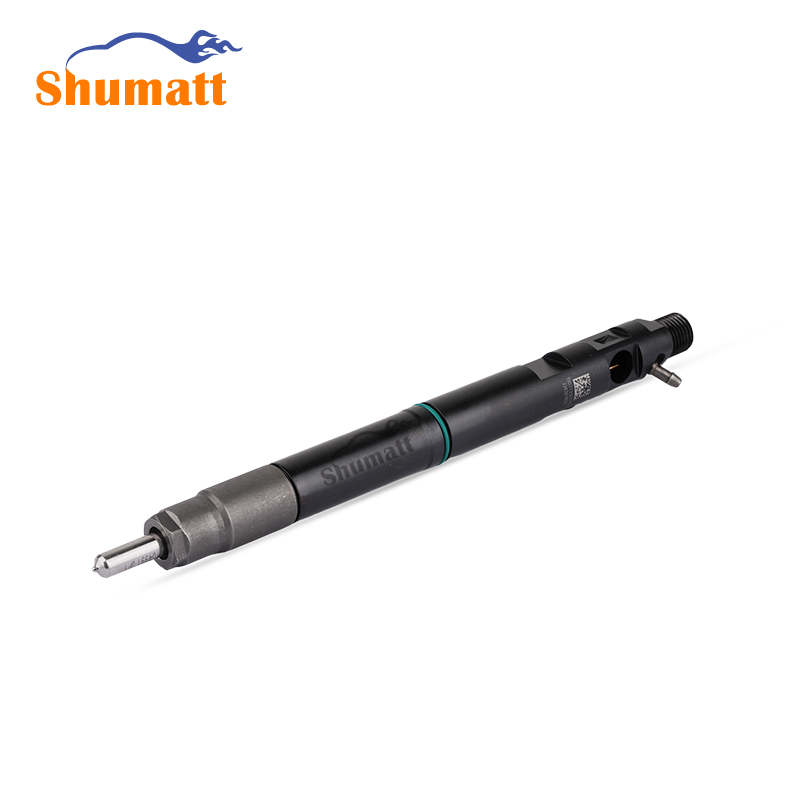

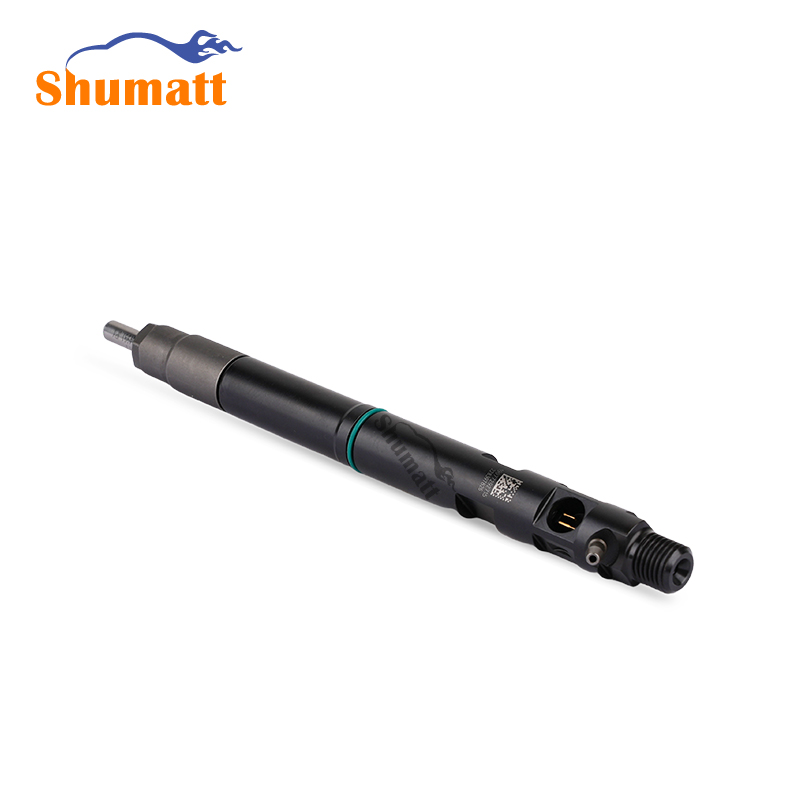

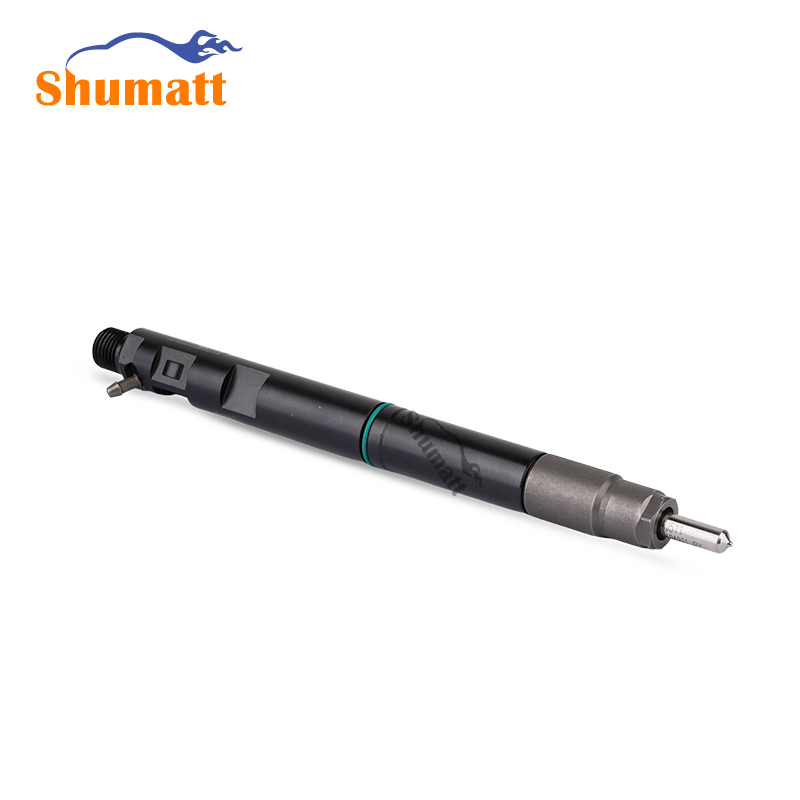

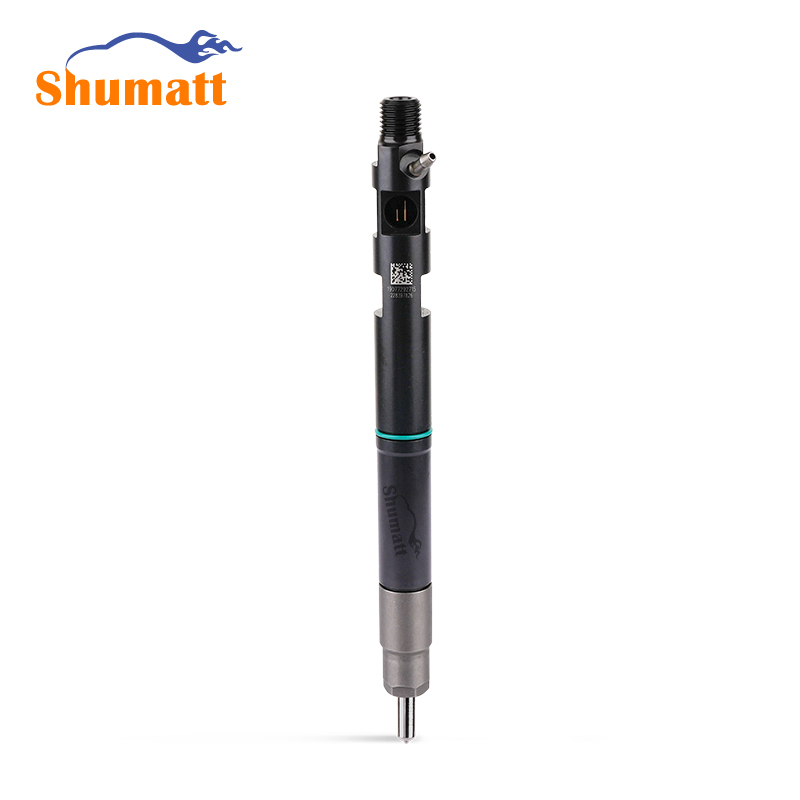

| Title | China made new high quality CR series 28397569 diesel injector |
| SKU1 | G2Z180028397569 |
2. 28397569 Injector’s Common Part Number
(1) Injector’s Exchange Information
| Injector Part Number | Universal Number | Re-manufactured Number |
| 28397569 | / | / |
| / | / |
(2) Injector’s Application Information
| Injector Part Number | GREAT WALL Car Model | Car Model |
| 28397569 | 1100100XED61 | / |
( 3 ) Injector’s Part Number Common Writing
28397569, 1100100XED61
3.28397569 Injector’s Matching Information
| Vehicle brand | Series | Car Model |
| GREAT WALL | / | / |
4.28397569 Injector’s Parameter
Adaptation System：DFI1.5
Injector Series：CR Series
Injector Type：Electromagnetic Injector
Vehicle Configuration Information: GREAT WALL
5.28397569 Injector’s Specifications and Dimensions
Injector Size： 23cm*4 cm *4 cm = 368cm³ (L*W*H=V)
Injector Net Weight：0.22kg
Gross Weight：0.26kg
Injector Quality: China made brand new
Package Size： 26cm*6 cm *6 cm = 936 cm³
Injector Type：Diesel Common Rail Injector
MOQ：4 Pieces
6. 28397569 Injector’s Quality Control
（1）Injector Testing
All injector spare parts are tested for electrical characteristics, accuracy, high temperature, low temperature, withstand voltage, leakage, durability, and various working conditions.
（2）Injector Assembling
And the quality control of the injector production and installation process, our company strictly follows the standard product installation data and product installation steps to install, such as injector stroke test, injector solenoid valve tightening torque, injector nozzle tightening torque,
（3）Injector Inspection
The factory inspection of the injector is undergone full inspection, random inspection, and batch inspection three inspections. Different brands of test benches are used to test the same fuel injector for a total of no less than three times for factory inspection, and the fuel injector installation testing environment are progressed in dust-free workshop.
7. 28397569 Injector’s Customized Service
（1）Injector’s Customized Service: Meet the customized needs of OEM manufacturers for shell lettering, logo engraving, injector internal packaging, injector external packaging and labels customized, etc.
（2）Injector’s Customized Service Requirements：
The purchased of customized injector are not less than 10 pieces.
Customized injector packages no less than 1000 pieces.
Customized products involve the need of specify logo, the OEM manufacturer needs to provide trademark authorization and the sample of logo image file.
Once the customized fuel injector is sold, it cannot be returned or exchanged if there is no quality problems.
8.28397569 Injector’s Technical Support Obtaining Methods
（1）Injector Technical File, visit http://shumatt.com to get the technical file.
（2）Injector Technical Videos
Facebook：Visit https://www.facebook.com/hison.li to get the technical videos，constantly follow can get more information.
YouTube：https://www.youtube.com/channel/UCByvYBx7VjV_mAfxh_Hu-aw to get the technical videos，constantly follow can get more information.
Shumatt: Visit http://shumatt.com to get the technical videos.
（3）Injector Information Query Software
TruckBook Parts EPC APP，Android/Apple App Store download and install，visit http://shumatt.com to get the download and installation tutorial
（4）Search The fuel injector test data through TruckBook Parts EPC APP.
9.28397569 Injector’s Packing
Domestic express packaging：Usually wrapped in waterproof scotch tape, such as picture No.1.
International express packaging：Wrapped with waterproof yellow tape After wrapping the black protective film, such as picture No. 2.
Pallet Shipping：Use fumigation free and recycling trays that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties for the outside, such as picture No.3,
also, the products can be packaged according to customers’ requirements.
The packing tray is made of plastic and can be recycled.
Transparent tape, yellow tape, black wrapping protective film, white wrapping protective film are non-degradable materials, please dispose of them properly.
Minors are prohibited from using transparent tape, yellow tape, black wrapping protective film, and white wrapping protective film to avoid personal injury.
Pic No.1 |
Pic No.2 |
| Domestic express packaging：
Wrapped by Transparent tape |
International express packaging：
Wrapped with yellow tape after wrapping black protective film |
Pic No.3 |
|
| Pallet Shipping：Use pallet that meet export requirements, and use white wrapping
protective film to wrap and bind with cable ties |
|
