Description

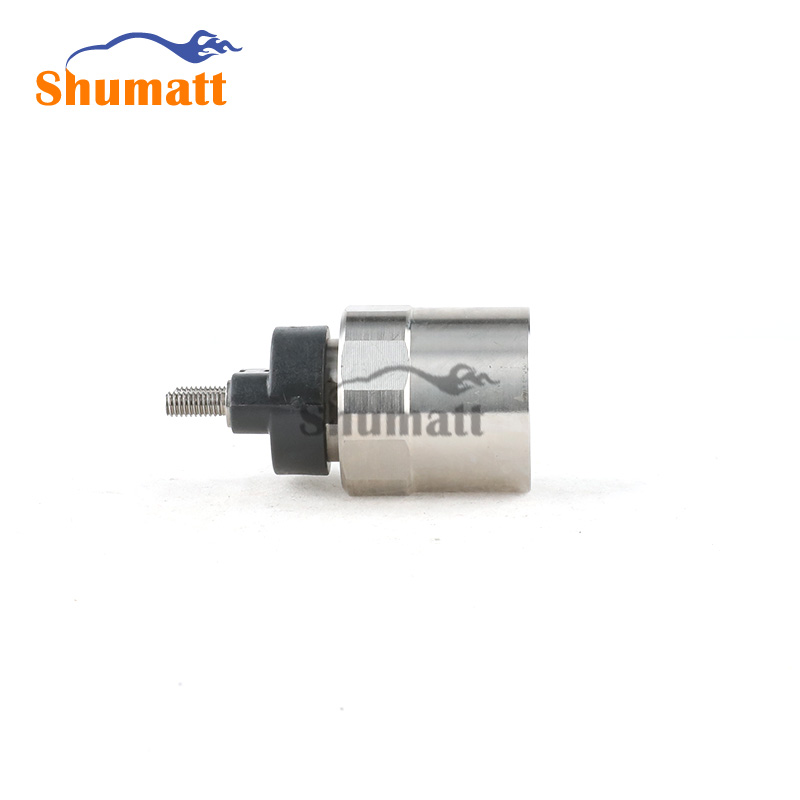

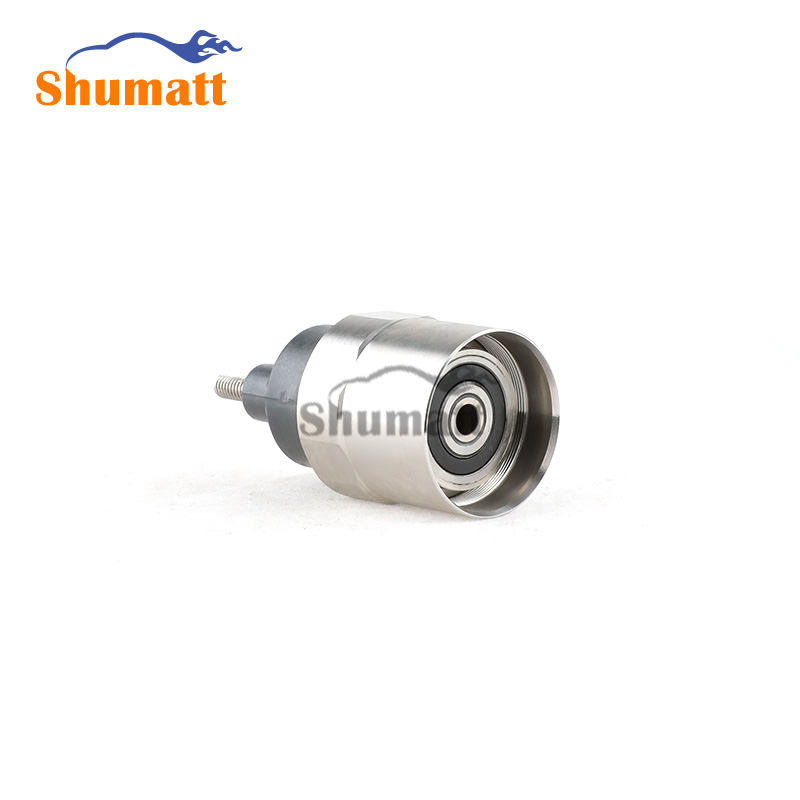

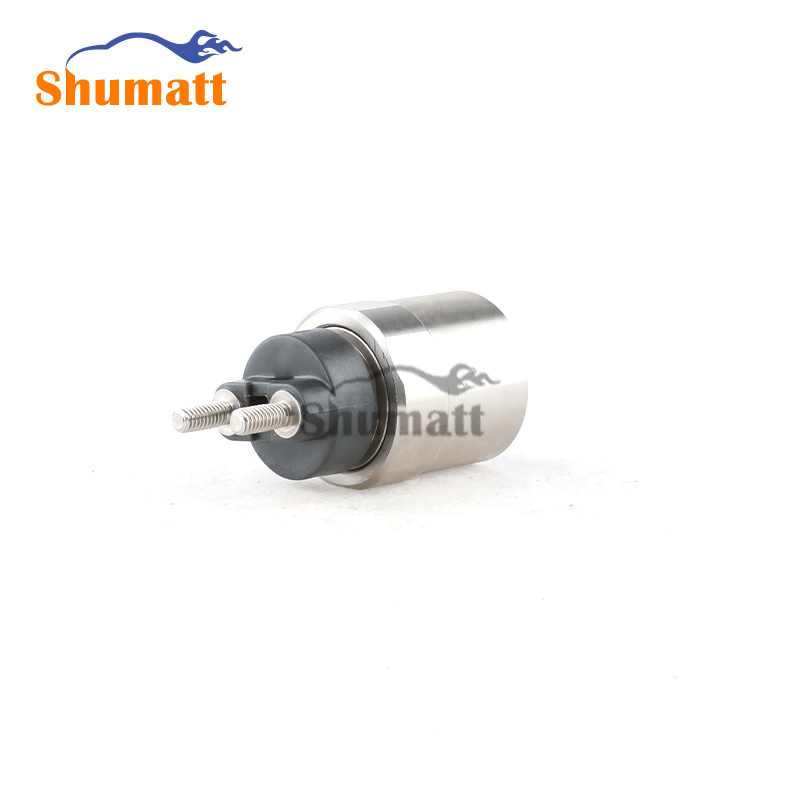

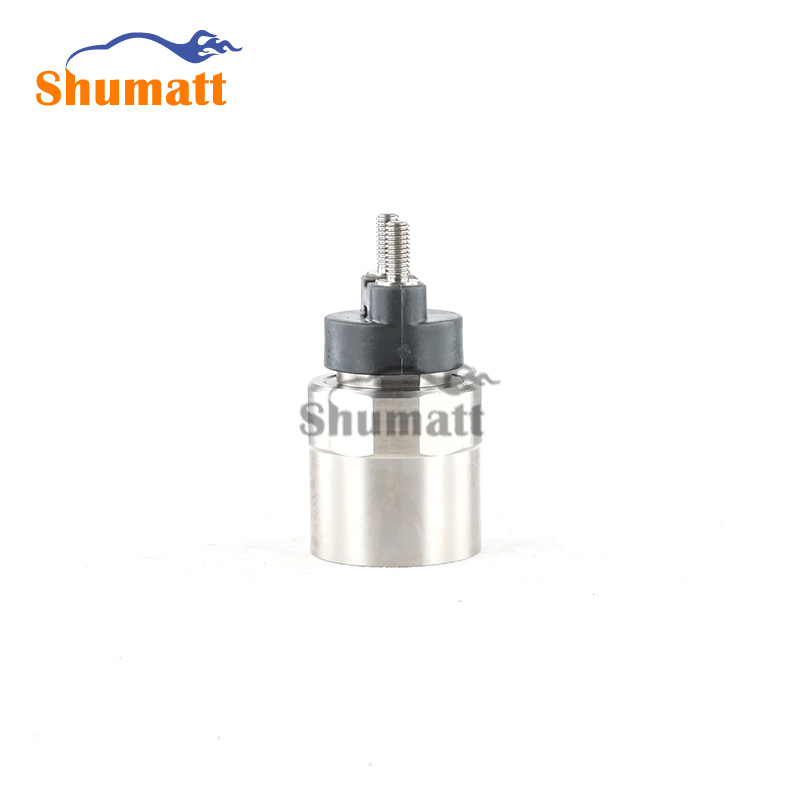

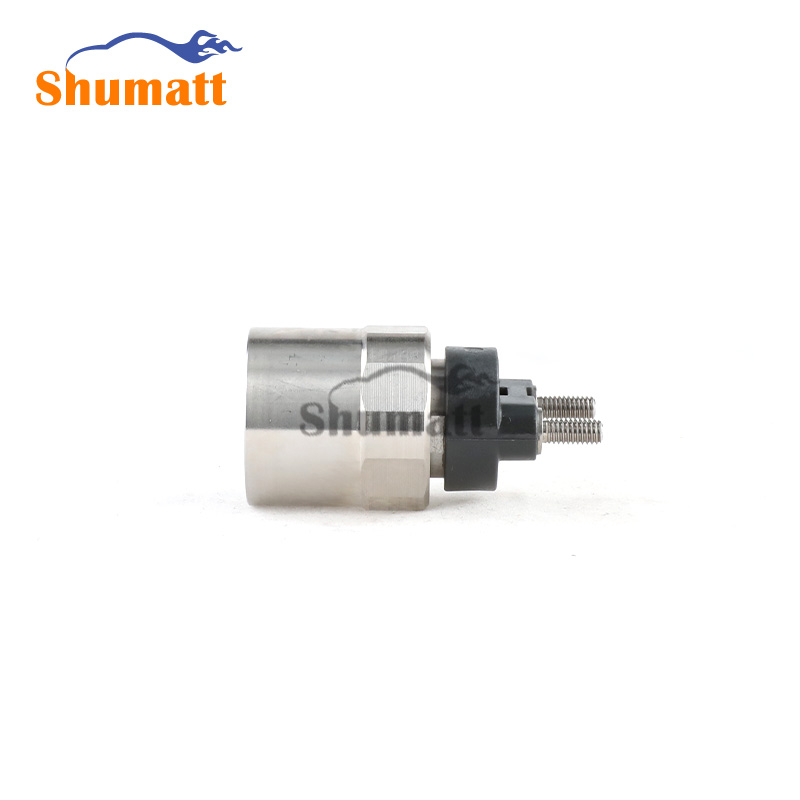

1. 294701-0145 Injector Solenoid Valve Introduction

1.1. 294701-0145 Injector Solenoid Valve Basic Information

1.2. 294701-0145 Injector Solenoid Valve Common Part Number

（1）Injector Solenoid Valve Applicable for Injector Model

（2）Injector Solenoid Valve Application Information

1.3. 294701-0145 Injector Solenoid Valve Parameters

Adaptation System: Common Rail System

Injector Solenoid Valve Series: G2 series

Injector Solenoid Valve Type: Solenoid Type

Inductance: 145uH

1.4. 294701-0145 Injector Solenoid Valve Specifications And Dimensions

Injector Solenoid Valve Size: 6cm* 3cm *3cm =54cm³

Individual Injector Solenoid Valve Weight: 130g

Injector Solenoid Valve With Packaging Weight: 150g

Injector Solenoid Valve Quality: China Made New

Injector Solenoid Valve Packaging Size: 7cm* 5cm *5cm =175cm³

Injector Solenoid Valve Type: High Pressure Common Rail Injector Solenoid Valve

Injector Solenoid Valve Minimum Order Quantity: 1 piece

1.5. 294701-0145 Injector’s matching information

For more information, please download and check the file “Injector Solenoid Valve 294701-0145 Technical File.pdf”.

1.6. 294701-0145 Injector Solenoid Valve Quality Control

(1) Injector Solenoid Valve Testing

All parts of the injector solenoid valve have undergone electrical characteristics testing, precision testing, high temperature testing, low temperature testing, withstand pressure testing, leakage testing, durability testing, and various working conditions testing.

(2) Injector Solenoid Valve Installation

In addition, the injector solenoid valve production and installation process is quality controlled. Our company strictly follows the standard product installation data and product installation steps for installation, such as injector solenoid valve  stroke test, injector solenoid valve  solenoid valve tightening torque, injector solenoid valve nozzle tightening torque.

(3) Injector Solenoid Valve Inspection

The factory inspection of the injector solenoid valve  has undergone three inspections: full inspection, random inspection, and batch inspection. Different brands of test benches are used to test the same injector solenoid valve  for a total of no less than three times for factory inspection, and the fuel injector installation testing environment are progressed in dust-free workshop.

1.7. 294701-0145 Injector Solenoid Valve Customization Service

(1) Injector Solenoid Valve Customization Service Coverage: Meet OEM manufacturers’ customization needs for shell engraving, logo engraving, injector solenoid valve internal packaging, injector solenoid valve external packaging and labels, etc.

(2) Injector Solenoid Valve Customization Service Requirements:

The purchase of customized injector solenoid valve is no less than 10 pieces.

The purchase of customized injector solenoid valve boxes is no less than 1000 pieces.

 Customized products involve the need of specify logo, the OEM manufacturer needs to provide trademark authorization and the sample of logo image file.

 Once the customized injector solenoid valve is sold, it can’t be returned or exchanged if there is no quality problems.

1.8. 294701-0145 Injector Solenoid Valve Technical Support Obtaining Methods

(1) Injector solenoid valve technical data: visit http://shumatt.com to get the technical data.

(2) Injector solenoid valve technical videos:

Facebook: Visit https://www.facebook.com/hison.li to get the technical videos, constantly follow can get more information.

YouTube: https://www.youtube.com/channel/UCByvYBx7VjV_mAfxh_Hu-aw to get the technical videos, constantly follow can get more information.

Shumatt: Visit http://shumatt.com to obtain the technical videos.

(3) Injector solenoid valve Information query software

TruckBook Parts EPC APP, download and install on Android/Apple App Store , visit http://shumatt.com to get the download and installation tutorial

(4) Search the Injector solenoid valve test data through TruckBook Parts EPC APP.

1.9. 294701-0145 Injector Solenoid Valve Shipping Package

Domestic express packaging: Usually wrapped in waterproof scotch tape, such as picture No.2.

International express packaging: Wrapped with waterproof yellow tape after wrapping the black protective film, such as picture No. 3.

Pallet Shipping: Use fumigation free and recycling trays that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties for the outside, such as picture No. 4,

also, the products can be packaged according to customers’ requirements.

 The packing tray is made of plastic and can be recycled.

 Transparent tape, yellow tape, black wrapping protective film, white wrapping protective film are non-degradable materials, please dispose of them properly.

 Minors are prohibited from using transparent tape, yellow tape, black wrapping protective film, and white wrapping protective film to avoid personal injury.

Pic No.1	Pic No.2
Domestic express packaging： Wrapped by Transparent tape	International express packaging： Wrapped with yellow tape after wrapping black protective film
Pic No.3
Pallet Shipping：Use pallet that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties
