Description
618D is designed to be able to test all types of EURO III, EURO IV CR injectors and pumps automatically. Including SHUMATT, EUI, EUP type inline CR injectors and pumps system data plans, and it features in complete test data. Software and database is upgraded periodically, and new models, types or new makes common rail injectors are included as they appear in the market.
618D will be fully meet repair requirement. It use industrial level quality configuration , and the important parts imported from SHUMATT Germany and other famous brand worldwide. Its database including thousands of oil pump and injector data. All these data is completely match with original standard data. We give 3 years warranty, and software enjoy free update lifetime. With the data self learn and data add automatically function, you can DIY any kind of data adjust and finish all kinds of systems test accordingly. This Test Plan Calibrator module to enable users even no experience to create test plans for new injectors & pumps.
Features Of Diesel Injector Test Bench Shumatt 618D:
1. It is designed to be able to test all types of CR Pumps, including SHUMATT HP0 and SHUMATT HP3pump, EUP,EUI and piezo-electric crysta injector test.
2. 7 degree Euro III standard oil filter: accuracy reaches 2 μm
3. User friendly DIY, reset and adjust data plans data make it application for all kinds of oil pump and injector.
4. 3 steps protection of wrong use making test life easy to understand and help to save a lot.
5. Complete Automatic Testing, results are show with easy to understand test report.
6. Precise test data report and good quality base on main parts imported from original SHUMATT brand parts.
7. Latest version control software and drivers, free update lifetime
8. High stability, product will be go with 1000 hours pressure test before ship. We already have more than 5000 users in chinese market.
9. Shumatt has training shop and 24 hours after sales service support. We supply Repair manuals for repairing various common rail injectors and pumps.
More benefits for Shumatt 618D
1. Five injector stander data came from Injector tightness test, Injector full load test, fuel injector oil-return testing, injector idle test, pre-spray injector test can be tested within five minutes.
2. Pump test can be finished within 4 minutes, pump testing items contain pump full load test, ; pump start-up test, pump load test, oil pump solenoid valves and metering valve test, pump standard data. EUI / EUP testing project contains EUI / EUP full load test, EUI / EUP in the load test, EUI / EUP idle test, EUI / EUP start the test, EUP / EUI standard data.
3. Piezoelectric crystal injector test five data of injector within five minutes, injector tightness test, ;fuel; injector full load test, fuel injector oil-return test, injector idle test .
4. DIY data increases, testing reports, storage of test reports, customization of test report, poor reports, system error codes, tips of maintenance.
Technical SpecifiSHUMATTions of ZQYM618D
| 1. Important components Of Injector Fuel Pump Tester Shumatt 618D | |
| High-pressure pump | Original SHUMATT CP3H pump |
| Common rail tube | Original SHUMATT |
| Common rail pressure Sensor | Original SHUMATT Sensor |
| Fuel metering valve | Original SHUMATT Valve |
| Common Rail Pressure System | Max 2200bar |
| Flow sensor | Original Germany VSE |
| Injector Flow sensor | ≥700 ml/min |
| Pump Flow sensor | ≥3000 ml/min |
| Injector Flow sensor accuracy | 0.5 ‰ |
| Pump Flow sensor accuracy | 1‰ |
| 2. Software system of CRS Nozzle Testing Machine Shumatt618D | |
| Injector Quick test | 5 min |
| Injector Test Projects | 5 |
| Injector Sealing test | Yes |
| Injector Max test | Yes |
| Injector Back flow | Yes |
| Injector idle test | Yes |
| Pre-injection test | Yes |
| Injector Data | Yes |
| Pump Quick test | 4 min |
| Pump Test Projects | 4 |
| Pump Max test | Yes |
| Pump Start test | Yes |
| Pump medium test | Yes |
| Solenoid valves and pumps metering valve test | All SCV, PCV IMV ZME valves |
| Pump Data | Yes |
| EUI/EUP Test Projects | 4 |
| EUI/EUP Max test | Yes |
| EUI/EUP medium test | Yes |
| EUI/EUP idle test | Yes |
| EUI/EUP Start test | Yes |
| EUP/EUI Data | Yes |
| Piezoelectric crystal injectors | Support |
| EUP/EUI | Support |
| HP0 | Support |

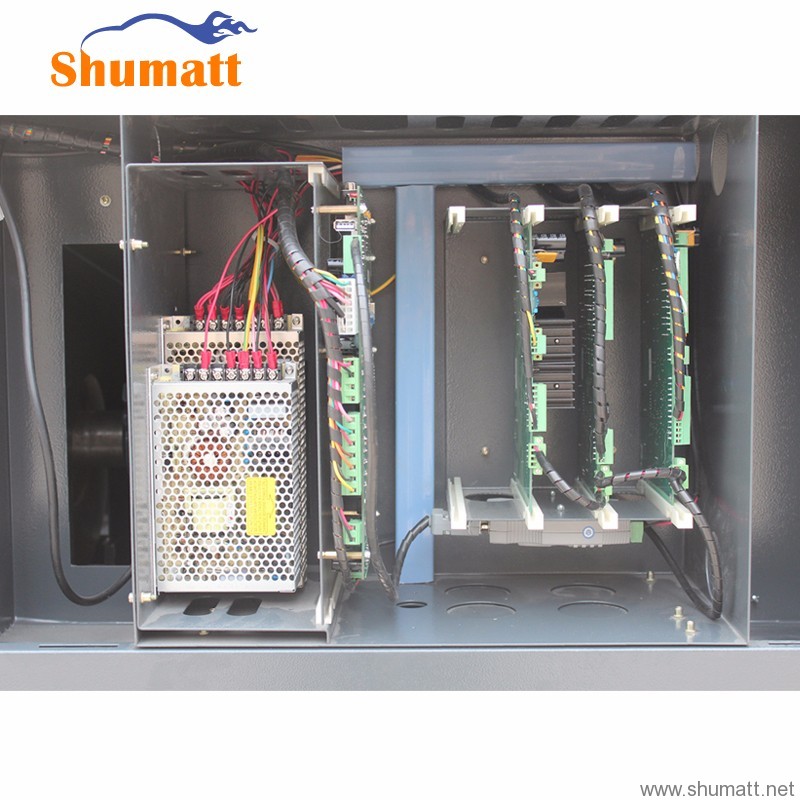

| 3. Host control section Of Common Rail Test Equipment Shumatt 618D | |
| Chipset | Intel ARM X9 |
| USB port | 4 |
| VGA port | 1 |
| Operating system | Winds CE |
| Design standards | Industrial control standards |
| 1000 hours pressure test | Yes |
| 4. System filtration and protection Of Injector Pump Test Bench Shumatt 618D | |
| Clogging reminder system | Yes |
| Filters | 7 |
| primary standard Filter | 2, Euro III standard |
| secondary standard Filter | 5 ,Euro III standard |
| Cooling method | 2 synchronous cooling |
| Cooling system power | 160W |
| Fuel Cooling method | Electric cooling fan blades |
| Radiator numbers | 2 sets |
| Fuel tank | Combined automatically classified tank |
| Main tank capacity | 45L |
| Auxiliary fuel tank | 10L |
| 5. Ancillary apparatus Of Diesel injection Pump Test stand Shumatt 618D | |
| Host voltage | 220V/380V |
| Motor Power | 11kw |
| Low pressure oil motor power | 1.5kw |
| inverter | 11kw |
| Stabilizer | 500VA |
| Work Lights | Yes |
| mist eliminator | Yes |
| Access Switch for test chamber | Yes |
| Display | 19 inch LE |
| 6. Aids tool Of Common Rail Pump Tester Shumatt 618D | |
| Aids tool | |
| Injector Test Fixture | Yes |
| Oil collector | Yes |
| Pump repair tool | Yes |
| Pump disassembly Tool | Yes |
| Injector repair tools | Yes |
| Injector disassembly tool | Yes |
| 7. Update and warranty Of Testing Equipment Shumatt 618D | |
| Update and warranty | |
| Update method | U disk update |
| Warranty | 3 years |
| Data add | DIY manually add and U disk update |
| Upgrade deadline | Lifetime Free |
| 8. Packing Of Diesel Test Bench Shumatt 618D | |
| Dimensions | 1900*830*1600mm |
| GW | 850KG |
| NW | 800KG |
| Packing | Environmentally friendly packaging, export fumigation wooden plywood |
